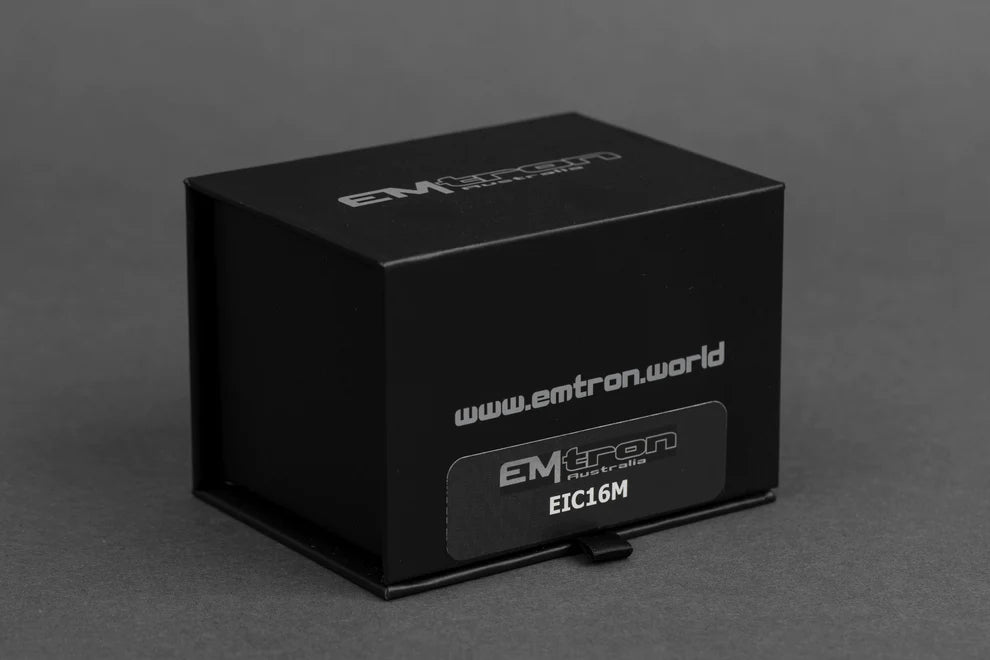

The EIC16M is a device designed to increase the input channel capability of all Emtron ECUs. The device is connected via CAN bus and will be automatically detected which will significantly minimize configuration time. The enclosure is made from billet 6061 aluminium and is waterproof to allow for implementation in extreme environments. Installation is made simple through use of a Motorsport proven Deutsch Autosport connector system.
Communications
CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
Power Supply
Operating Voltage: 7.0 to 22.0 Volts DC
Operating Current 60mA at 14.0V
Reverse Battery Protection
Internal
64MHz 16-bit Automotive Processor
x12 Analog Inputs 0.0 – 5.0V
Resolution:
0 – 5.0V: 12 Bit 1.22mV
x4 Analog Inputs 0.0 – 16.0V
Resolution:
0 – 16.0V: 12 Bit 3.90mV
Analog Sampling Rate 500 Hz
Frequency Inputs x4 Channels (Shared with Inputs ANV13-16):
Range 0.2Hz up to 6500.0Hz
0.1Hz
Switchable 1k Pullups to 5V on Inputs AN9 – 16
Operationg Temperature
Operating Temperature Range: -30 to 85°C (-22 to 185°F)
