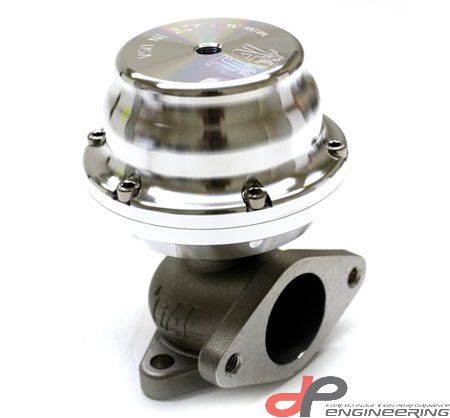

TiAL F38 external wastegate

The classic 2 bolt flange wastegate. This wastegate has a 38mm valve - same as the MV-S, and its body is about an inch taller.

Specifications:

• High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
• All Stainless Steel hardware.
• Mating weld flanges are 304L or 1018
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).

Included in package:

• F38 Assembly.
• F38 Valve Seat.
• 2 TiAL Air Fittings
• 2 Mounting Bolts

TiAL's F38 is equipped with the racing valve stem.
