Fuel Filter Housing, Ø50mm -10ORB, BLACK
Fuel Filter Housing, Ø50mm -10ORB, BLACK
- -10 ORB (o-ring boss) female In / Out, O-ring seal
- Billet aluminum housing
- Flow direction indicator
- E-85 compatible, Black
- NO ELEMENT. FILTER ELEMENT SOLD SERARATELY CHECK ADD ONS

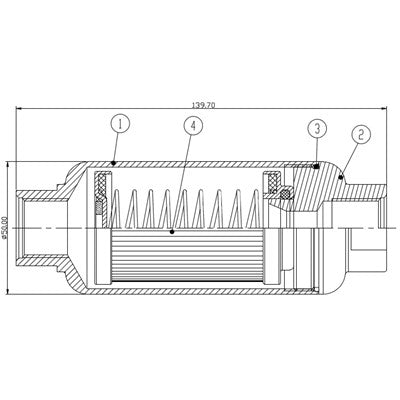

FILTER-1010B - Fuel Filter Assembly, Billet Aluminum, -10 ORB In / Out, NO ELEMENT, Black
- -10 ORB (o-ring boss) female In / Out
- O-ring seal
- Billet aluminum housing
- Flow direction indicator
- E-85 compatible
- Black
- NO ELEMENT
- FILTER ELEMENT SOLD SERARATELY CHECK ADD ONS
current production may vary from item image
current production may vary from item image
Racetronix filter assemblies are an affordable, reliable and visually attractive way to protect your fuel system components from contaminants and potential engine damage. Unlike many aftermarket fuel filters which only offer 30, 60 or 100-micron filtering, Racetronix offers elements which filter particles down to 10-microns. This specification is comparable to factory filters which are designed to properly protect fuel injectors, check-valves, jet-pumps and other sensitive components found in late-model fuel injection systems. A magnetic pick-up is integrated into the filter to trap small metallic particles for added protection. Please select your required ORB adapter fittings, mounting bracket and elements listed under add-ons on this page.
Racetronix recommends 10-micron elements on the outlet side (between pump and fuel injectors) 30-micron elements on the inlet side (suction) of fuel pumps for fuel injection applications. 60µ and 100µ elements may only be used as pre-filters where specified by the pump manufacturer.
PLEASE SELECT A FILTER ELEMENT VISIBLE ON THE RIGHT SIDE OF THIS PAGE UNDER ADD-ONS.
AVAILABLE ELEMENTS
