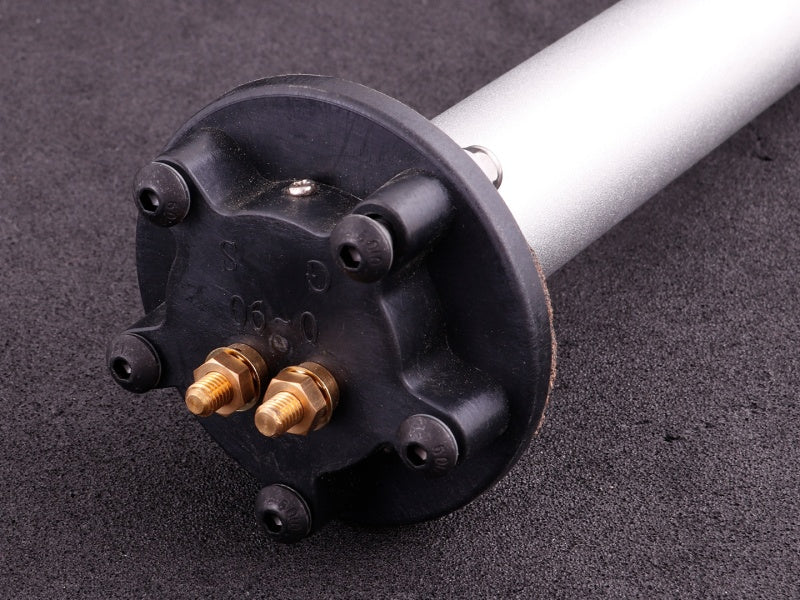

Fuel level sensor (0-90ohm)

Fuel level sensor (0-90ohm)

Diameter: 69mm

Body diameter: 31mm

Bolt CC: 53mm

Sensor length: 255mm

Total length: 280mm

Starting from tank: 25mm

Bolt diameter: M5

Resistance full: 90 Ohm

Resistance empty: 0 Ohm

Requires external pullup resistor, see support pages.
