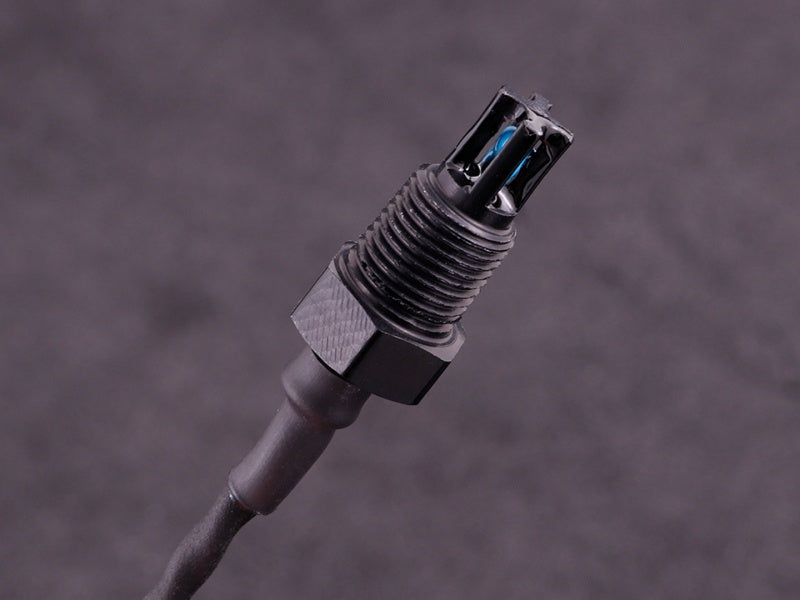

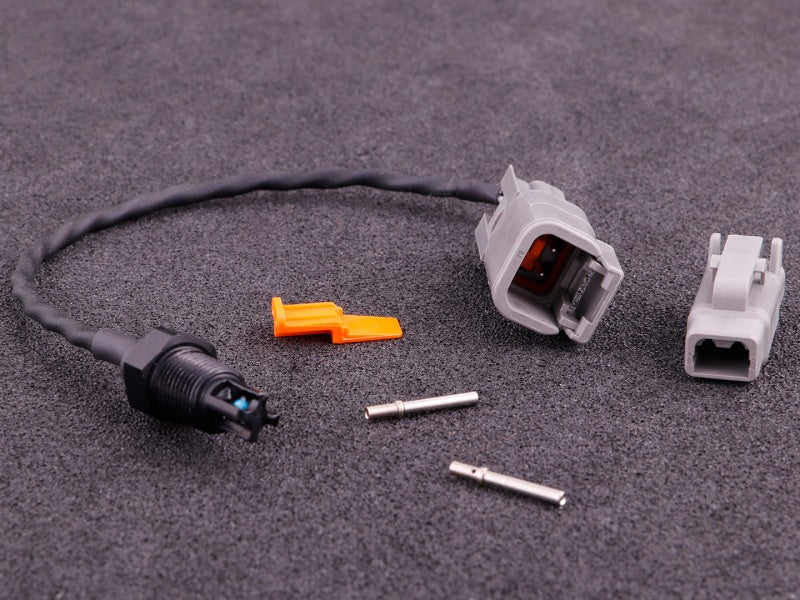

Intake temperature sensor (IAT) HV 1/8 NPT

Intake temperature sensor (IAT) HV 1/8 NPT

Air Temperature Sensor which uses a high temperature, fast responding NTC thermistor. The thermistor body is coated with a blue insulating lacquer.

a high accuracy, fast response NTC thermistor used to measure air charge temperature. Measurement range -40 DegC to +150 DegC, exceptional thermal shock performance, 1/8NPT thread, sealed 2-way Deutsch connector.

• High Temperature, high accuracy NTC thermistor.
• Temperature Range: -40 DegC to 150 DegC.
• High accuracy over a wide temperature range.
• Exceptional thermal shock performance.
• Compact Design.
• 1/8 NPT Thread.
• DTM sealed 2- way connector.
• Fully potted for a waterproof seal.

-40 deg C = 48085ohm

+150 deg C = 52.661ohm.
