MaxxECU GEN2 RACE, with connector kit

MaxxECU GEN2 RACE, with connector kit

The MaxxECU GEN2 RACE is a next-generation standalone engine management system designed for high-performance and motorsport applications. It supports up to 12 cylinders fully sequentially, dual wideband lambda, dual knock control, 16 injector outputs, 12 ignition/GP outputs, high-speed internal logging, Wi-Fi, Bluetooth and dual CAN communication.

Specification:

• All 1–12 cylinder engines, 2-stroke or 4-stroke
• Up to 12 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• 8 pulse inputs supporting VR or Hall sensors
  • 2 inputs with selectable 5V/12V sensor supply
  • Selectable pull-ups on all pulse inputs
• 24 analog inputs with selectable pull-ups
• 8 Type-K EGT inputs
• Dual wideband lambda controllers
  • Bosch LSU 5.2
  • Bosch LSU 4.9
  • Bosch LSU 4.2
• 2 knock sensor inputs
• 16 peak/hold injector outputs
  • Supports high- and low-impedance injectors
  • Can also be used as GP outputs
• 12 ignition / GP outputs
  • Selectable +5V / +12V / Ground output
• 8 additional ground-switching GP outputs
• 4 additional +12V GP outputs
  • Up to 5A according to MaxxECU's comparison chart
• 4 H-bridge / motor outputs
  • Suitable for electronic throttle and other motor control
  • 5A continuous / up to 15A maximum according to MaxxECU's comparison chart
• Built-in 550 kPa MAP sensor
  • Supports approximately 4.5 bar / 65 PSI boost
  • User-serviceable
  • BSP 1/8 connection
• Built-in 3-axis accelerometer, up to 8G
• Dual CAN bus
• Built-in Wi-Fi
• Built-in Bluetooth
• Dual USB-C
  • 480 Mbit/s PC/MTune connection
  • 12 Mbit/s auxiliary/tablet connection and charging
• 16 GB internal logging memory
• Internal logging up to 1000 Hz
• Logging of 2000+ ECU channels
• Analog/digital input sampling up to 2000 Hz
• EGT sampling at 200 Hz
• Fuel and ignition calculations performed 3,000 times per second
• Ignition resolution: 0.1°
• Injector resolution: 0.001 ms
• Operating voltage: 6–22V
• IP68 waterproof
• Automotive-grade Superseal 1.0 connectors
• All inputs and outputs protected against overvoltage, reverse polarity and short circuits
• Dimensions: 240 × 138 × 35 mm, including protruding connectors
• Weight: approximately 700 g

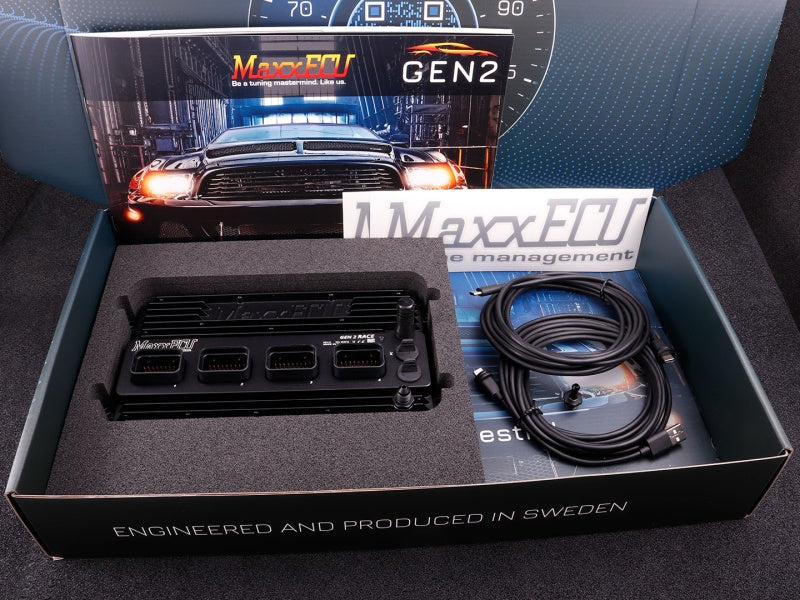

Products included

• 1 pcs 2423 – MaxxECU GEN2 RACE, unit only
• 1 pcs 2411 – MaxxECU GEN2 RACE box
• 1 pcs 2363 – MaxxECU GEN2 MAP sensor BSP 1/8 to AN3 nipple
• 1 pcs 2364 – MaxxECU GEN2 MAP sensor BSP 1/8 to hose nipple
• 2 pcs 2368 – MaxxECU GEN2 USB rubber USB-C cover
• 1 pcs 2288 – MaxxECU GEN2 RACE internal foam
• 1 pcs 2416 – MaxxECU GEN2 connector 1 kit
• 1 pcs 2417 – MaxxECU GEN2 connector 2 kit
• 1 pcs 2418 – MaxxECU GEN2 RACE connector 3 kit
• 1 pcs 2419 – MaxxECU GEN2 RACE connector 4 kit

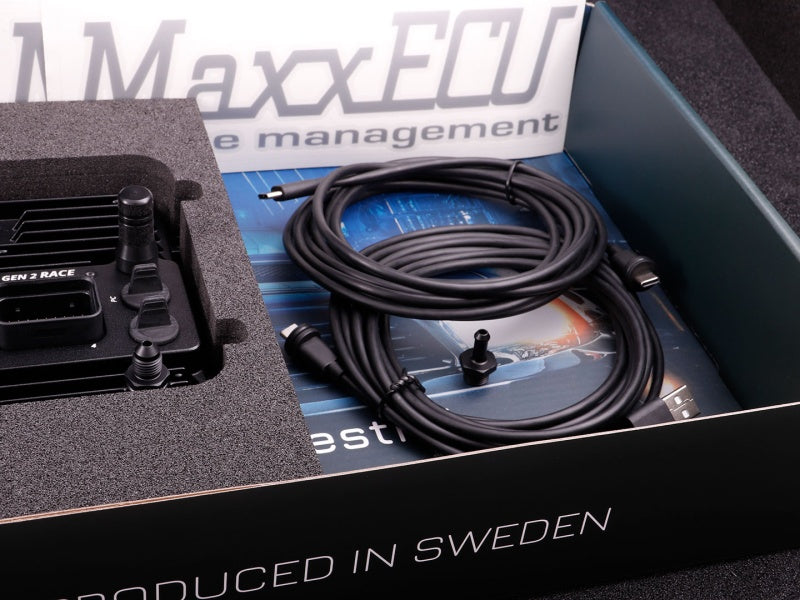

• 1 pcs 2413 – MaxxECU GEN2 communication cable, USB-C to USB-A
• 1 pcs 2414 – MaxxECU GEN2 communication cable, USB-C to USB-C
• 1 pcs 2427 – MaxxECU GEN2 RACE quick guide and wiring diagram, printed
• 1 pcs 2412 – MaxxECU GEN2 antenna, Bluetooth / Wi-Fi
• 2 pcs 1235 – MaxxECU sticker
