MaxxECU MINI STANDARD (ECU, harness and accessories)

MaxxECU MINI STANDARD (ECU, harness and accessories)

MaxxECU MINI, based on our market leading MaxxECU units and uses the same easy to use, yet powerful MTune software.

Fast Facts:

• 4 injector (high impedance only) and 4 ignition outputs
• 4 ignition outputs (no internal amplifiers).
• IAT, TPS, CLT analog inputs.
• Built-in 400kPa MAP-sensor.
• 2 extra 0-5V analog inputs.
• 2 extra digital inputs.
• 4 extra GPO (GND) outputs.
• CAN.
• 1 trigger input (VR/Hall). Available digital input can be used as HOME for sequential control).
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.

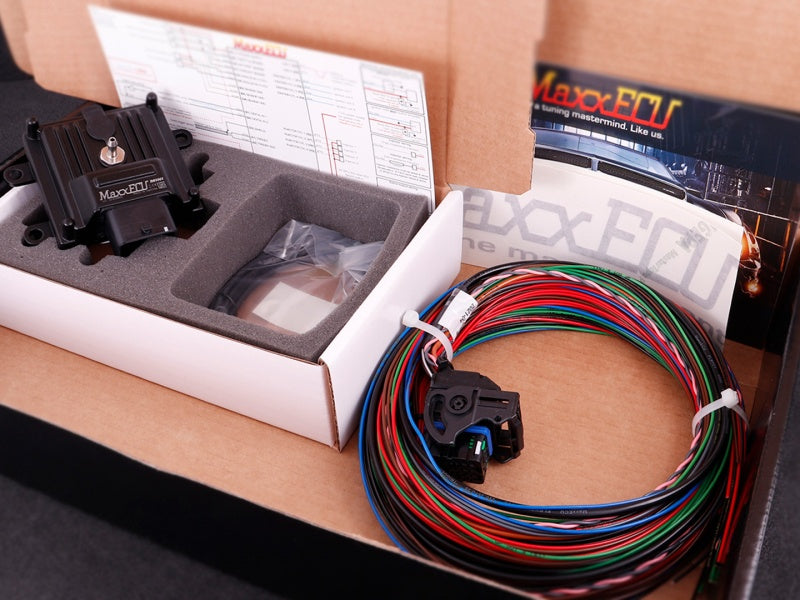

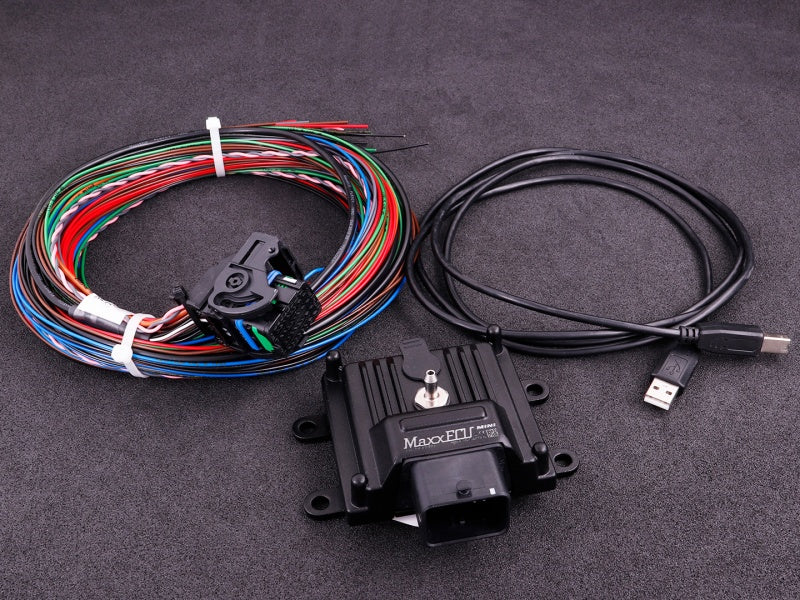

Products included:

• 1 pcs 1986 MaxxECU MINI unit

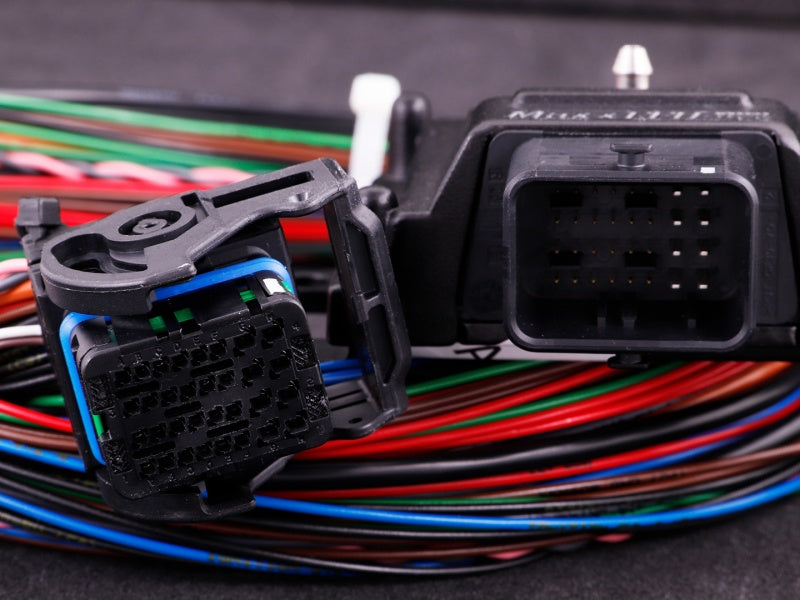

• 1 pcs 1985 MaxxECU MINI cable harness
• 1 pcs 1988 MaxxECU MINI USB cable (micro USB)
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1994 MaxxECU MINI box
• 1 pcs 1996 MaxxECU MINI wiring diagram (printed)
• 1 pcs 1852 MaxxECU Quick Guide (English)
