MaxxECU MINI STANDARD (ECU, harness and accessories) (without internal CAN resistor)

MaxxECU MINI STANDARD (ECU, harness and accessories) (without internal CAN resistor)

The MINI ECU does not have the internal CAN termination resistor soldered, so this kit is perfect for piggyback installations.

Fast Facts:

• 4 injector (high impedance only) and 4 ignition outputs
• 4 ignition outputs (no internal amplifiers).
• IAT, TPS, CLT analog inputs.
• Built-in 400kPa MAP-sensor.
• 2 extra 0-5V analog inputs.
• 2 extra digital inputs.
• 4 extra GPO (GND) outputs.
• CAN.
• 1 trigger input (VR/Hall). Available digital input can be used as HOME for sequential control).
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.

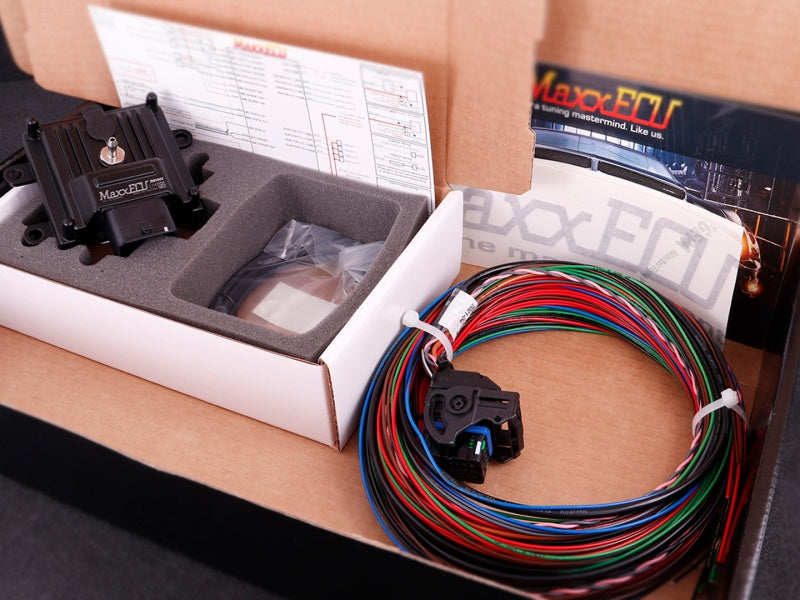

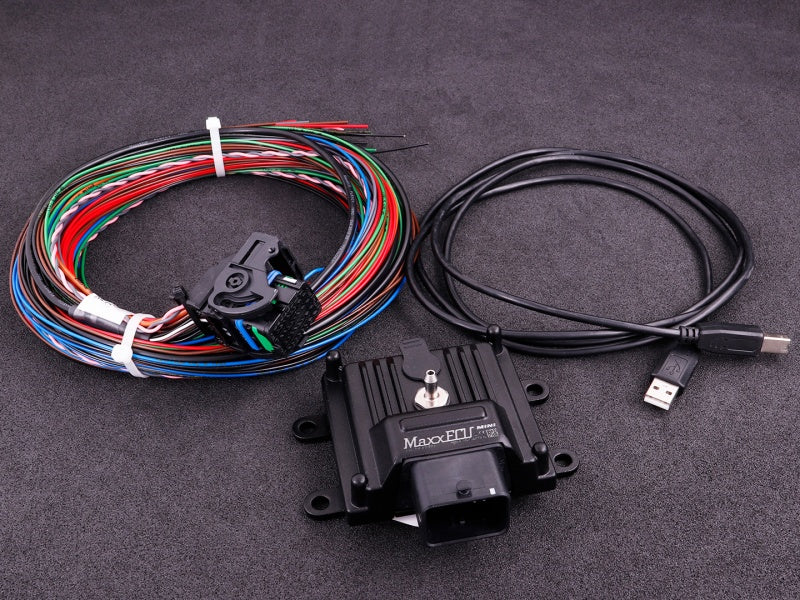

Products included:

• 1 pcs 2209 MaxxECU MINI unit (without internal CAN resistor)

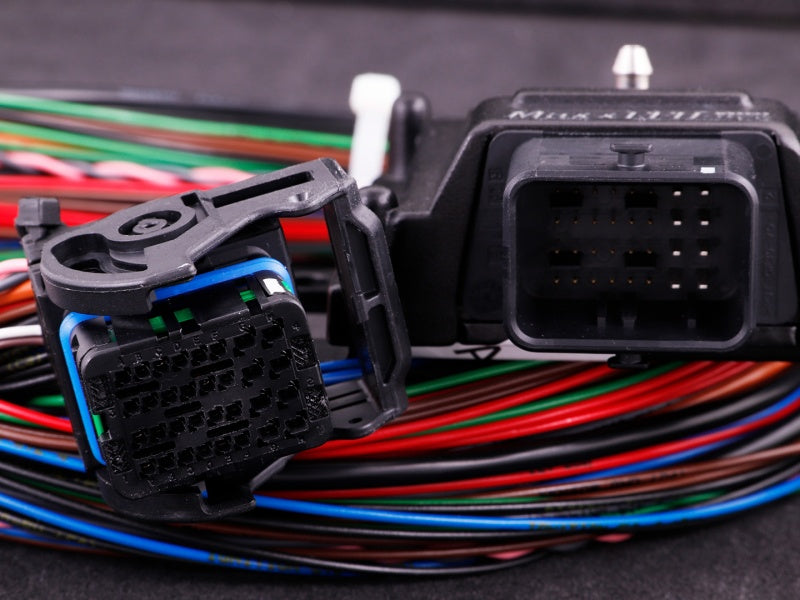

• 1 pcs 1985 MaxxECU MINI cable harness
• 1 pcs 1988 MaxxECU MINI USB cable (micro USB)
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1993 MaxxECU MINI foam casing
• 1 pcs 1996 MaxxECU MINI wiring diagram (printed)
• 1 pcs 1852 MaxxECU Quick Guide (English)
