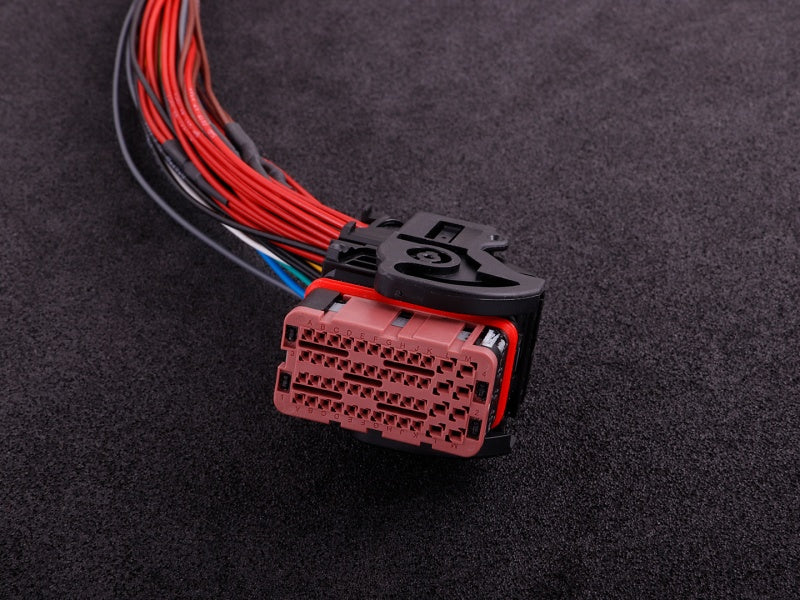

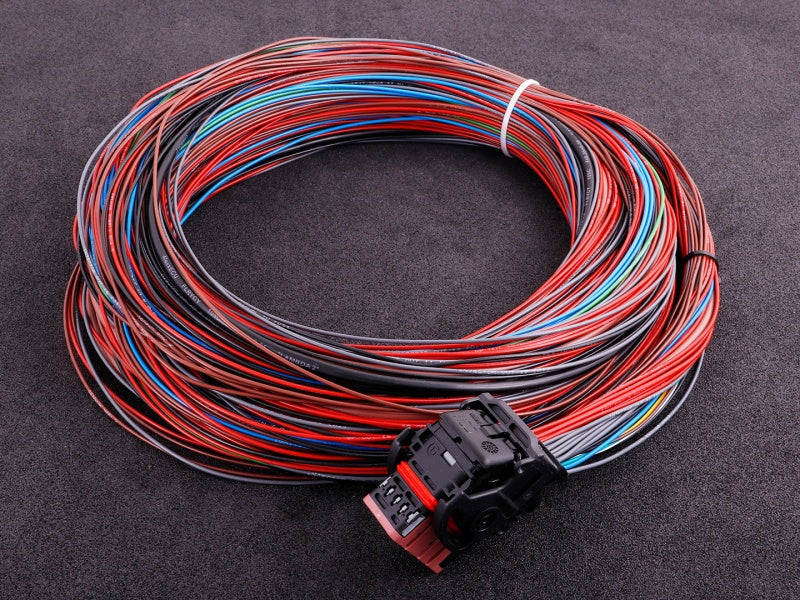

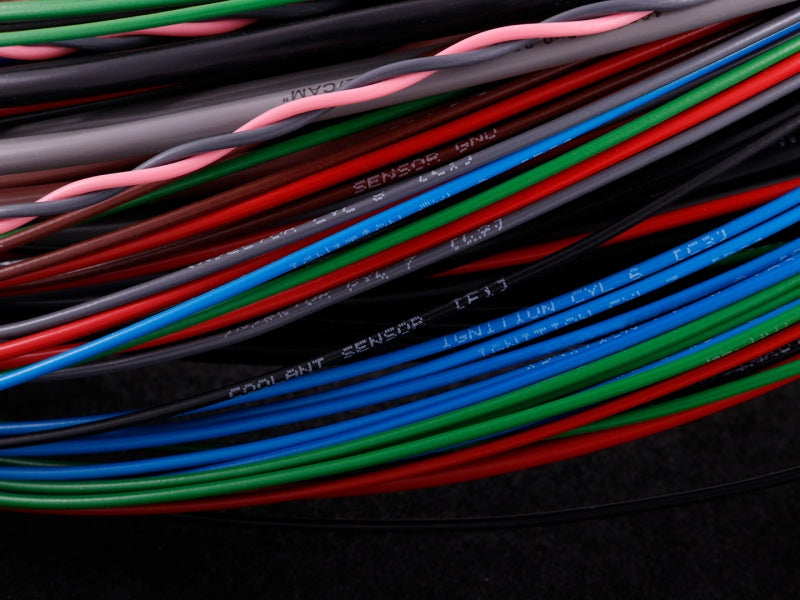

MaxxECU PRO flying lead harness 3m connector 3 (cyl 9-16, E-Throttle, extra out)

MaxxECU PRO flying lead harness 3m connector 3 (cyl 9-16, E-Throttle, extra out)

MaxxECU wiring harness for PRO.

Extends MaxxECU PRO with the following.

• DIN (VR) 4/5
• DIN 6/7
• WBO 2 + GPO 10(WBO 2 heater)
• Analog in 0-5V 5-12
• GPO (+12V) 15-22
• E-Throttle motor 1+2
• INJ 9-16
• IGN 9-12
• KEY_IN(+12V) + 12V ECU 2 + Engine GND 2
• Sensor GND + 5V power supply 2

3.0M
