MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.9)

MaxxECU PRO PREMIUM (ECU, harnesses, accessories and LSU 4.9)

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU PRO gives the user complete engine control!

Fast Facts:

• Up to 12 cylinders sequentially.
• 16 injector outputs (low or high impedance injectors).
• 12 ignition outputs
• 12 inputs for exhaust gas temperature sensors (EGT).
• Built in MAP-sensor for boost pressure up to 3bar (400Kpa).
• Built in driver for dual WBO sensors (LSU 4.2 and 4.9 compatible)
• Dual E-Throttle(DBW) support.
• Dual knock sensor input
• 16 optional 0-5V inputs.
• 6 additional temperature inputs.
• 10 additional digital inputs (4 of them can be used with VR sensors)
• 30 auxiliary outputs (GPO), 8 of them +12v outputs
• 2 x 0-5V output.
• 1 time 5-10v output (sensor output).
• Dual CAN bus.
• Waterproof aluminum case.
• Connectors, software and settings completely backwards compatible with standard MaxxECU.
• Easy upgrade.

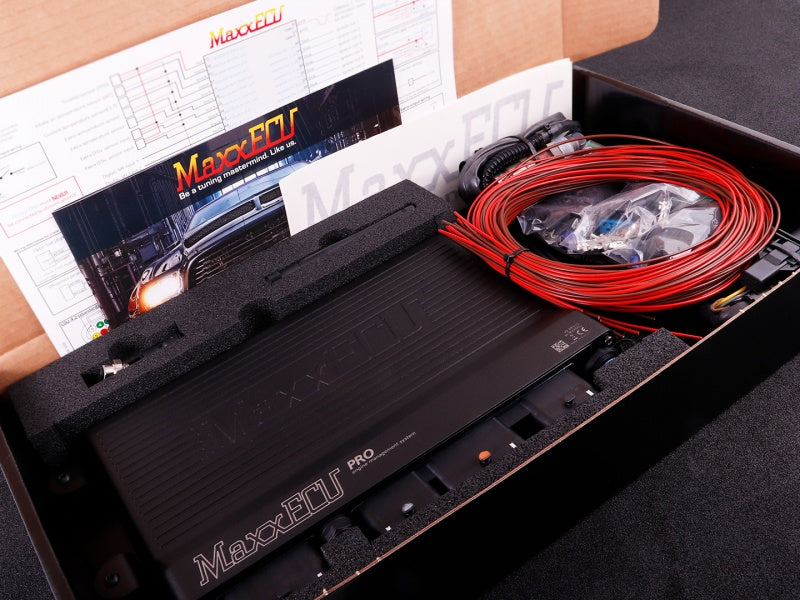

Products included:

• 1 pcs 1469 MaxxECU PRO unit only
• 1 pcs 1852 MaxxECU Quick Guide (English)
• 1 pcs 871 MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
• 1 pcs 1470 MaxxECU PRO flying lead harness 3m connector 2 (EGT)
• 1 pcs 1468 MaxxECU PRO flying lead harness 3m connector 3 (cyl 9-16, E-Throttle, extra out)
• 1 pcs 1467 MaxxECU PRO flying lead harness 3m connector 4 (extra in/out, CAN 2, KNOCK))
• 2 pcs 2018 Lambda Sensor Bosch wideband lambda LSU 4.9 (0281 004 191)
• 2 pcs 1533 Connector 6-way socket housing (LSU 4.9 wideband sensor)
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 1 pcs 1052 MaxxECU extra cable for installations
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 1606 MaxxECU PRO / RACE H2O USB-cable 1.5m
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 2214 MaxxECU PRO bracket kit
• 1 pcs 2219 MaxxECU PRO wiring diagram (printed)
