MaxxECU RACE H2O PREMIUM (ECU, harnesses, accessories, LSU 4.2)

MaxxECU RACE H2O PREMIUM (ECU, harnesses, accessories, LSU 4.2)

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

• Waterprotected (IP67)
• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection
• 2 extra temperature sensors
• 2 knock sensor inputs
• 6 extra 0-5V inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs
• 9 extra LOW DRIVING outputs for additional features
• 2 extra +12V DRIVING outputs
• 4 extra motor outputs

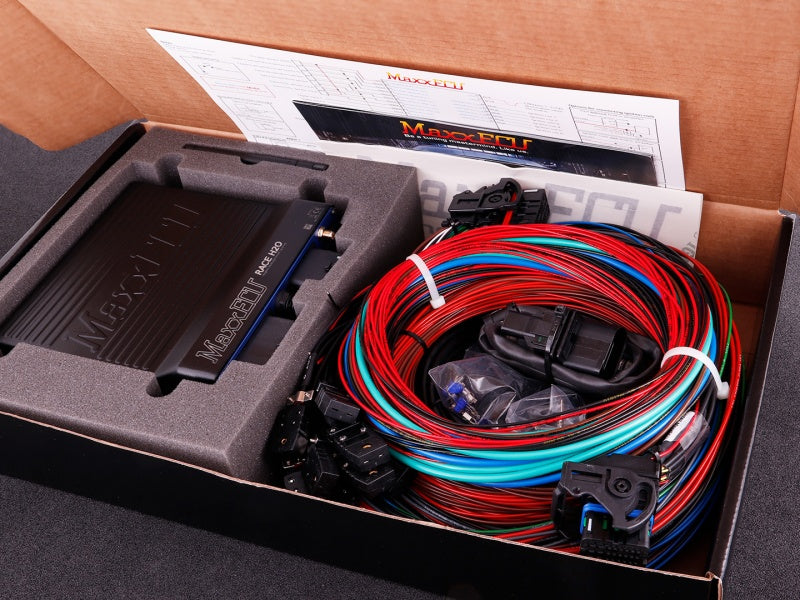

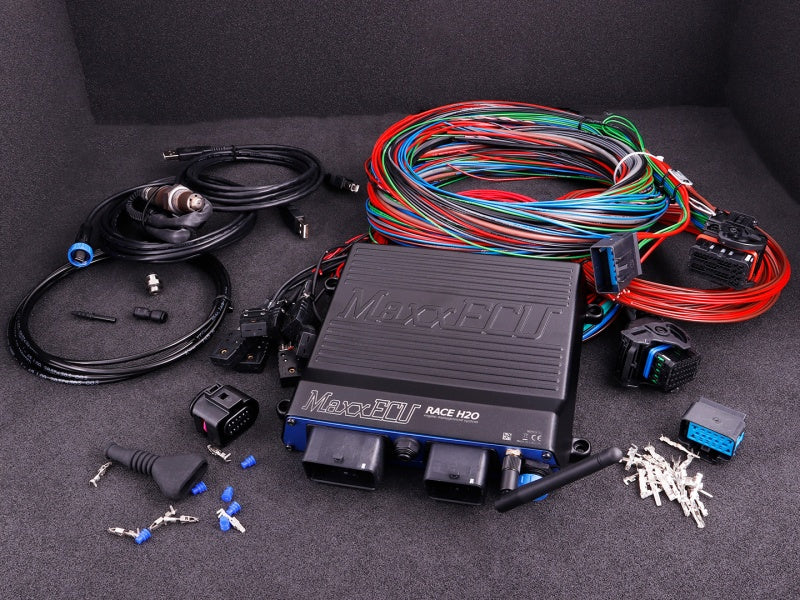

Products included:

• 1 pcs 1896 MaxxECU RACE H2O unit without accessories
• 1 pcs 871 MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
• 1 pcs 1787 MaxxECU RACE harness 2 (EGT, E-Throttle, extra)
• 1 pcs 107 Lambda Sensor Bosch wideband lambda LSU 4.2
• 1 pcs 894 Connector 6-way socket housing (LSU 4.2 wideband sensor)
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 1 pcs 1606 MaxxECU PRO / RACE H2O USB-cable 1.5m
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 1052 MaxxECU extra cable for installations
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1852 MaxxECU Quick Guide (English)
• 1 pcs 1911 MaxxECU RACE wiring diagram (printed)
