MaxxECU RACE PREMIUM (ECU, harnesses, accessories and LSU 4.9)

MaxxECU RACE PREMIUM (ECU, harnesses, accessories and LSU 4.9)

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

• All 3-12 cylinder engines (4-stroke)
• Up to 8 cylinders fully sequentially
• Up to 12 cylinders in wasted spark
• Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection
• 2 extra temperature sensors
• 2 knock sensor inputs
• 6 extra 0-5V inputs
• 4 extra digital inputs (VR / hall) or switches
• 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
• 8 peak/hold injector outputs
• 8 ignition outputs
• 9 extra LOW DRIVING outputs for additional features
• 2 extra +12V DRIVING outputs
• 4 extra motor outputs

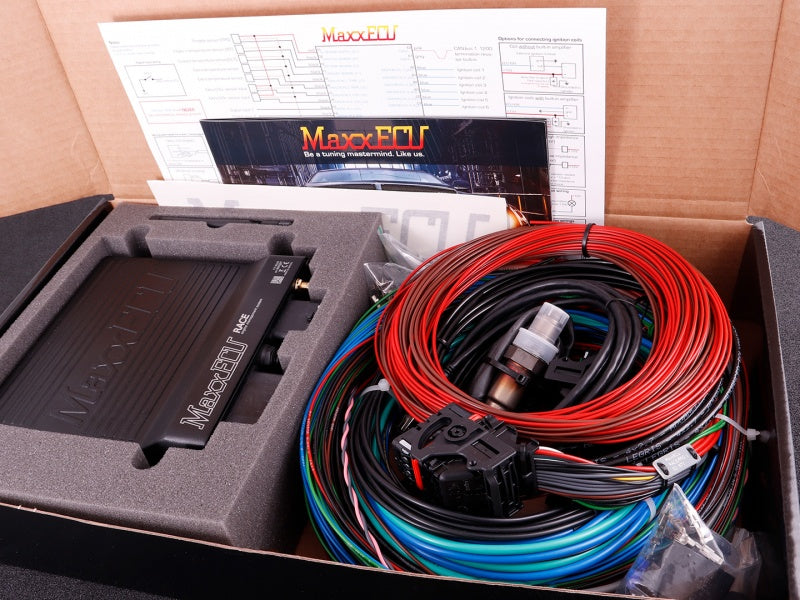

Products included:

• 1 pcs 1783 MaxxECU RACE unit without accessories
• 1 pcs 871 MaxxECU V1/RACE/PRO flying lead wiring harness connector 1
• 1 pcs 1787 MaxxECU RACE harness 2 (EGT, E-Throttle, extra)
• 1 pcs 2018 Lambda Sensor Bosch wideband lambda LSU 4.9 (0281 004 191)
• 1 pcs 1533 Connector 6-way socket housing (LSU 4.9 wideband sensor)
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 1 pcs 924 MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 1052 MaxxECU extra cable for installations
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 1852 MaxxECU Quick Guide (English)
• 1 pcs 1911 MaxxECU RACE wiring diagram (printed)
