Mitsubishi EVO IV - VIII MaxxECU RACE Plugin EXTRA

Mitsubishi EVO IV - VIII MaxxECU RACE Plugin EXTRA

The EGR valve is not controlled. Stock EVAP can be removed and freeing up GPO 7 for extra in/out on MaxxECU. For using the car's standard ODB-2 port an external wiring to ODB-2 port is needed.

MaxxECU RACE is flexible,reliable and fast. MaxxECU will give you full engine control!

• 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness)
• Built-in 400kPa(3bar boost) MAP-sensor
• Fast and reliable USB PC-communication
• Android MDash app wireless BT-communication as dash
• Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor
• Control orginal idle solenoid, AC, tachometer and other original equipment*
• Fuel injectors can be replaced with optional high or low ohm
• Stock lambdasensor(s) must be removed and replaced with included LSU 4.2 wideband oxygen sensor
• No change in the vehicle's original system needs to be done*

* See technical documentation.

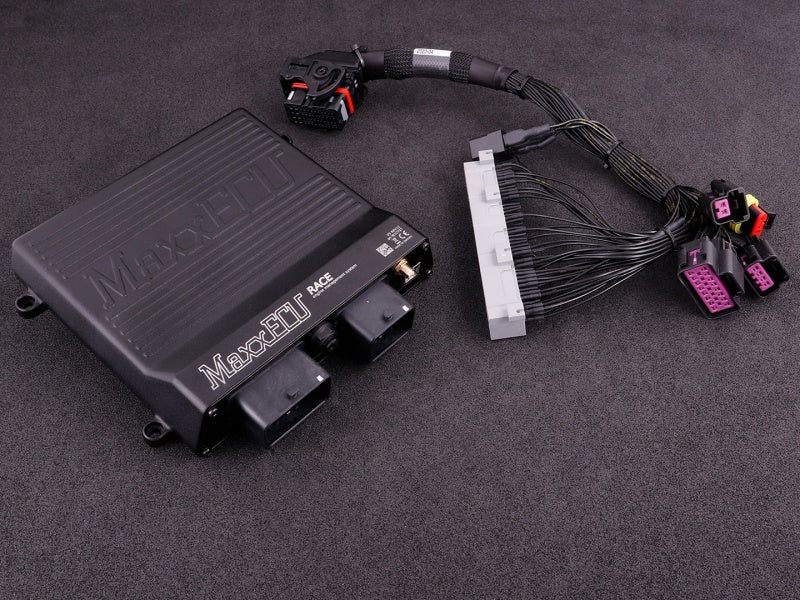

Products included

• 1 pcs 1783 MaxxECU RACE unit without accessories

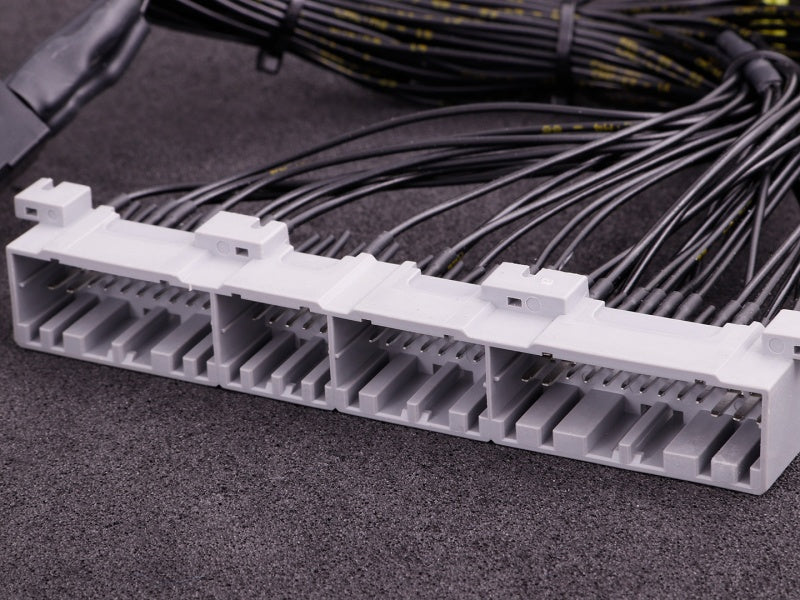

• 1 pcs 1619 MaxxECU Plugin adapter - Mitsubishi EVO IV - VIII
• 1 pcs 107 Lambda Sensor Bosch wideband lambda LSU 4.2
• 1 pcs 947 MaxxECU Plugin lambda cable (16-pin)
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 924 MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 894 Connector 6-way socket housing (LSU 4.2 wideband sensor)
• 1 pcs 1852 MaxxECU Quick Guide (English)
