Nissan S14A/S15 SR20 (short) MaxxECU RACE Plugin EXTRA

Nissan S14A/S15 SR20 (short) MaxxECU RACE Plugin EXTRA

MaxxECU RACE is flexible,reliable and fast. MaxxECU will give you full engine control!

• 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness)
• Built-in 400kPa(3bar boost) MAP-sensor
• Fast and reliable USB PC-communication
• Android MDash app wireless BT-communication as dash
• Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor
• Control orginal idle solenoid, AC, tachometer and other original equipment*
• Fuel injectors can be replaced with optional high or low ohm
• Stock lambdasensor(s) must be removed and replaced with included LSU 4.2 wideband oxygen sensor
• No change in the vehicle's original system needs to be done*

* See technical documentation.

Products included

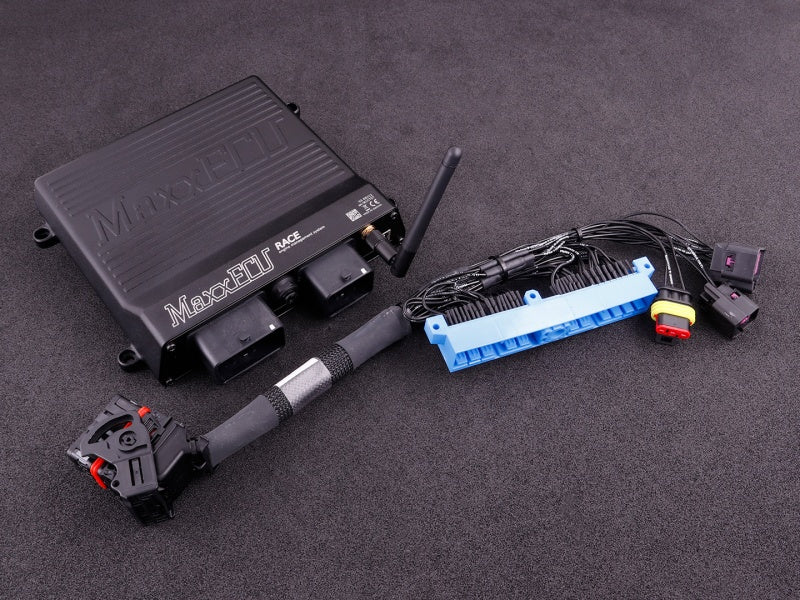

• 1 pcs 1783 MaxxECU RACE unit without accessories

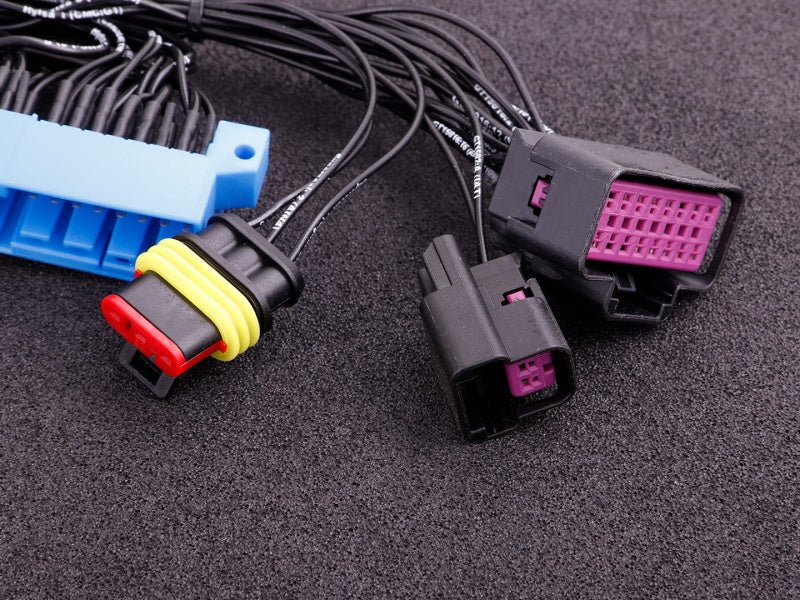

• 1 pcs 1459 MaxxECU Plugin adapter - Nissan S14A/S15 SR20 (64-pin)
• 1 pcs 107 Lambda Sensor Bosch wideband lambda LSU 4.2
• 1 pcs 947 MaxxECU Plugin lambda cable (16-pin)
• 1 pcs 928 MaxxECU hose kit (MAP sensor incl nipples)
• 1 pcs 924 MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
• 1 pcs 949 MaxxECU Bluetooth mobile antenna
• 2 pcs 1235 MaxxECU sticker
• 1 pcs 894 Connector 6-way socket housing (LSU 4.2 wideband sensor)
• 1 pcs 1225 Connector 3-pin housing Superseal
• 1 pcs 1852 MaxxECU Quick Guide (English)
