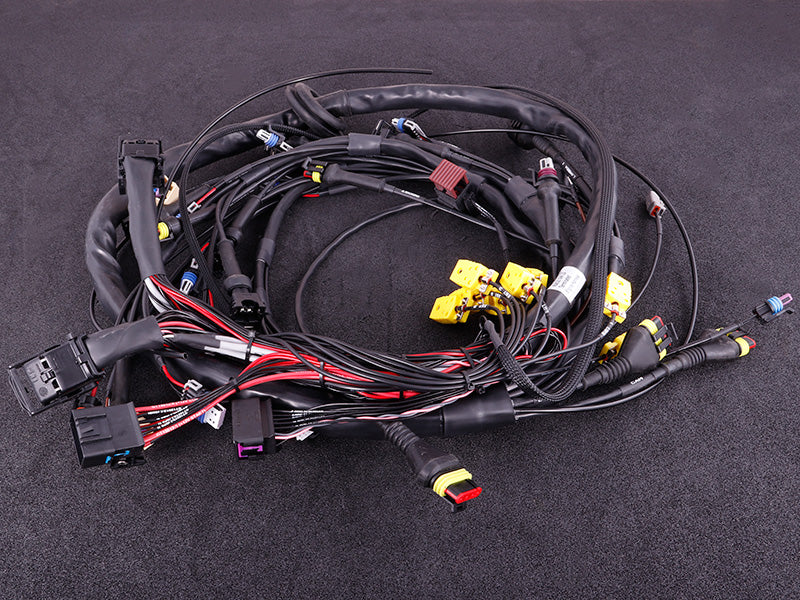

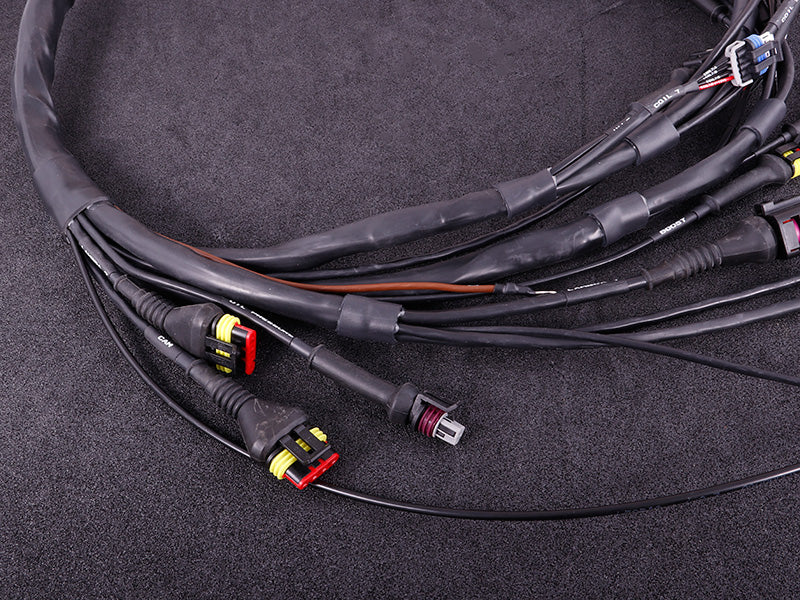

Terminated engine harness - GM LS GEN III/IV

Terminated engine harness - GM LS GEN III/IV

Terminated engine harness kit for GM LS GEN III/IV engines.

Only the main harness (see what's included below).

GEN III:

• 5.7L LS1/LS6

GEN IV:

• 6.0L LS2
• 6.2/7.0 LS3/LS4/LS7/LSX/LS9

• For E-Throttle and Hella E-pedal
• Prepared for turboapplication with an boost solenoid connector
• Bosch JPT injector connectors
• Uses stock coils
• To be used with GEN IV knocksensors
• MAP sensor hose inside harness
• 8 pcs EGT connectors in harness
• Easy to rewire to be used without E-Throttle if needed

See tech docs for more information.

Products included

• 1 pcs 1954 Terminated engine harness - GM LS no accessories
• 1 pcs 927 Connector 12-way socket housing GT150 (fits MaxxECU harness)
• 1 pcs 1703 Connector 16-pin Delphi GT150
• 1 pcs 1852 MaxxECU Quick Guide (English)
