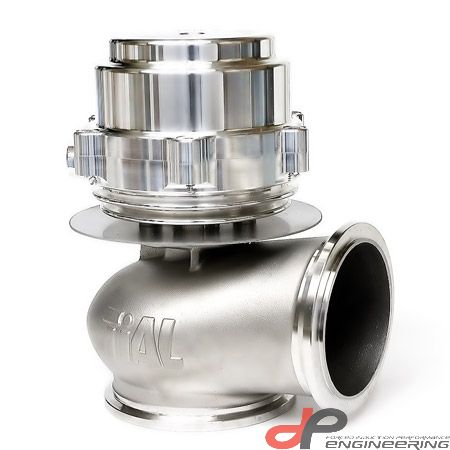

TiAL V60 external wastegate

The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Circuit de la Sarthe.

Specifications:

• High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
• All Stainless Steel hardware.
• Mating weld flanges are 304L
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
• Race proven at Le Mans
• Flows 330CFM @ 1psi differential pressure

Included in package:

• V60 Assembly.
• V60 Valve Seat.
• 2 TiAL Air Fittings
• Inlet and Outlet Flanges and Clamps

TiAL's V60 is equipped with the racing valve stem.
